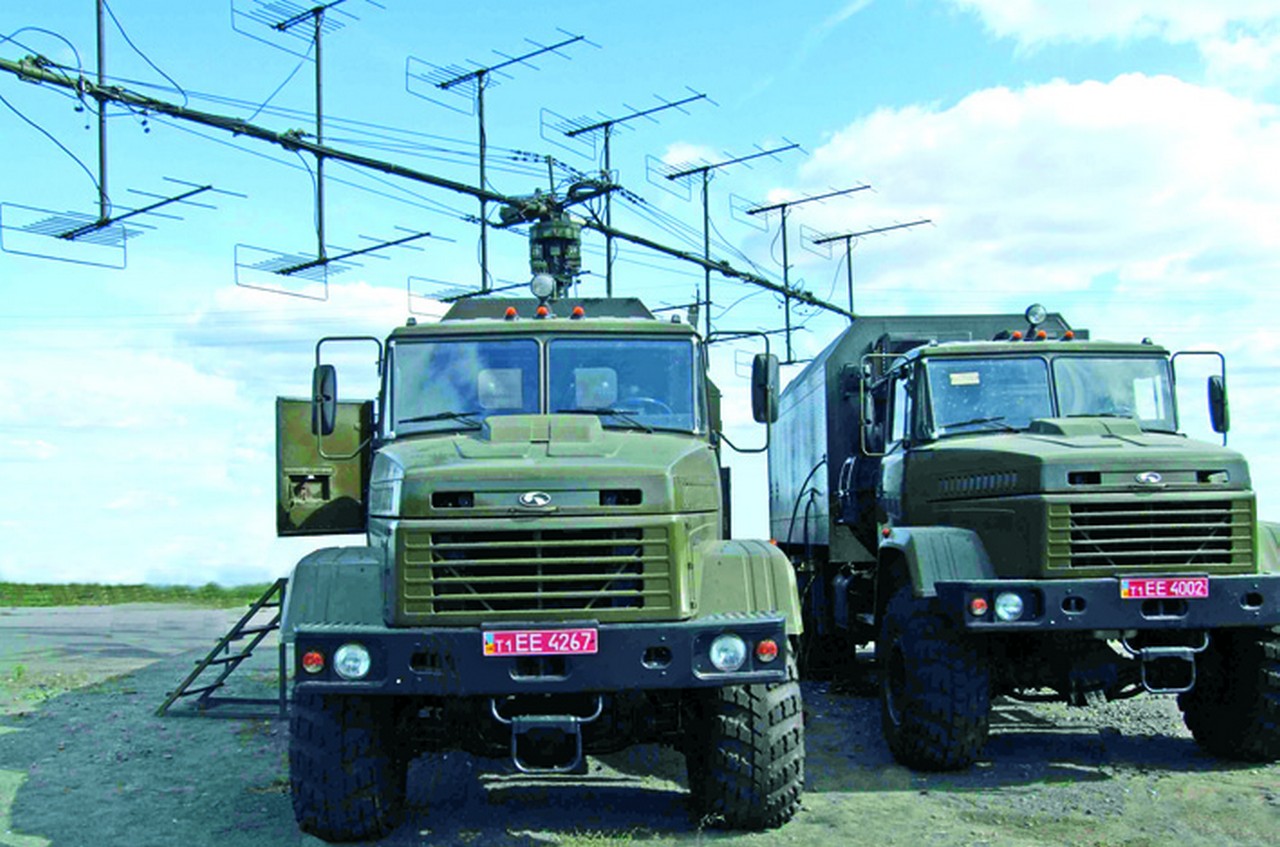

P-180U







Purpose: Solid-state radar station

Description: It is intended for reconnaissance of air targets (or objects) and current coordinates determination. Main advantages: large set of probing signals permits the user to select the best one based upon specific combat mission, as well as air and jamming environment; probing signals parameters (operating frequency, modulation type, radiation temporary pattern) are modernized; retuning of signal parameters may be organized both by the program preset and by randomness principle (at that it is necessary to stress that the retuning of probing signal parameters is not effect on passive jamming suppression); signal-to-noise ratio in amplitude operation mode is increased owing to matched filtering of signals received which increases the target detection range and coordinates measurement accuracy; dynamic range of signal processing is increased considerably (over 100 dB) increased which increases considerably the station jamming protection; effective algorithm of passive jamming with automatic compensation of wind velocity is introduced; automatic switching of amplitude and coherent channels is realized which reduced the signal losses, increased the target detection range and increased the coordinates measurement accuracy; it is realized in full scale the functions of radar (video) extractor for automatic afterdetector processing of reflected signals (detection, coordinates measurement, marks formation, jamming map, between-scan-processing, false alarm level stabilization, as well as identification signals processing and information distribution and transfer to the users); power consumption is reduced; practical design which considerably facilitate the radar operation; effective scheme of troubleshooting for all the radar elements with convenient interface. Entirely automatic processing of radar information excludes from the processing stages one of its weak link – a man-operator, and permits to separate the radar and control post by such distance which prevents the control post defeat by homing missiles aimed to the radar, which considerably increase the control system survivability.
