Description:

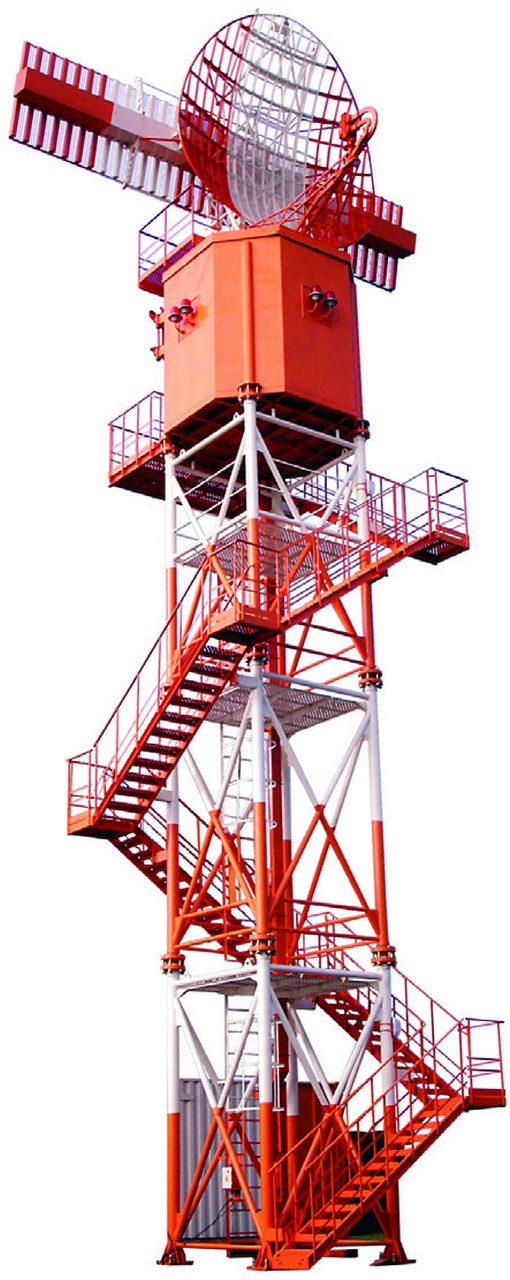

Airport Radar Complex «DNEPR-K» is designed to use in modern computer-aided ATC systems of airports.
Radar “DNEPR-K” has been developed accounting ICAO and EUROCONTROL recommendations and is the
embodiment of up-to-date radar technologies and unique experience gained in military primary radar development.
The “DNEPR-K” provides the controller with extremely accurate aircraft positional information in the airport zone
even under the conditions of weather, heavy ground clutter and interference from other radars.
Radar Complex “DNEPR-K” incorporates S-band Primary Surveillance Radar (PSR) and Monopulse Secondary
Surveillance Radar (MSSR) “KRONA” operating in modes A-C.
«DNEPR-K» Radar Configuration
- PSR equipment compartment
- MSSR equipment compartment
- Secured power supply equipment compartment
- Antenna system with the tower sections
- Remote control post and control monitor
MAIN FEATURES
- Secondary radar monopulse antenna
- Independent receipt and digital processing at different frequencies in one channel
(diversity mode)
- Solid-state transmitter
- High probability of small target detection
- Estimation of radial velocity while scanning
- Weather channel to indicate areas of meteorological phenomena
- Digital output radar data transmission
