Purpose:
Description:

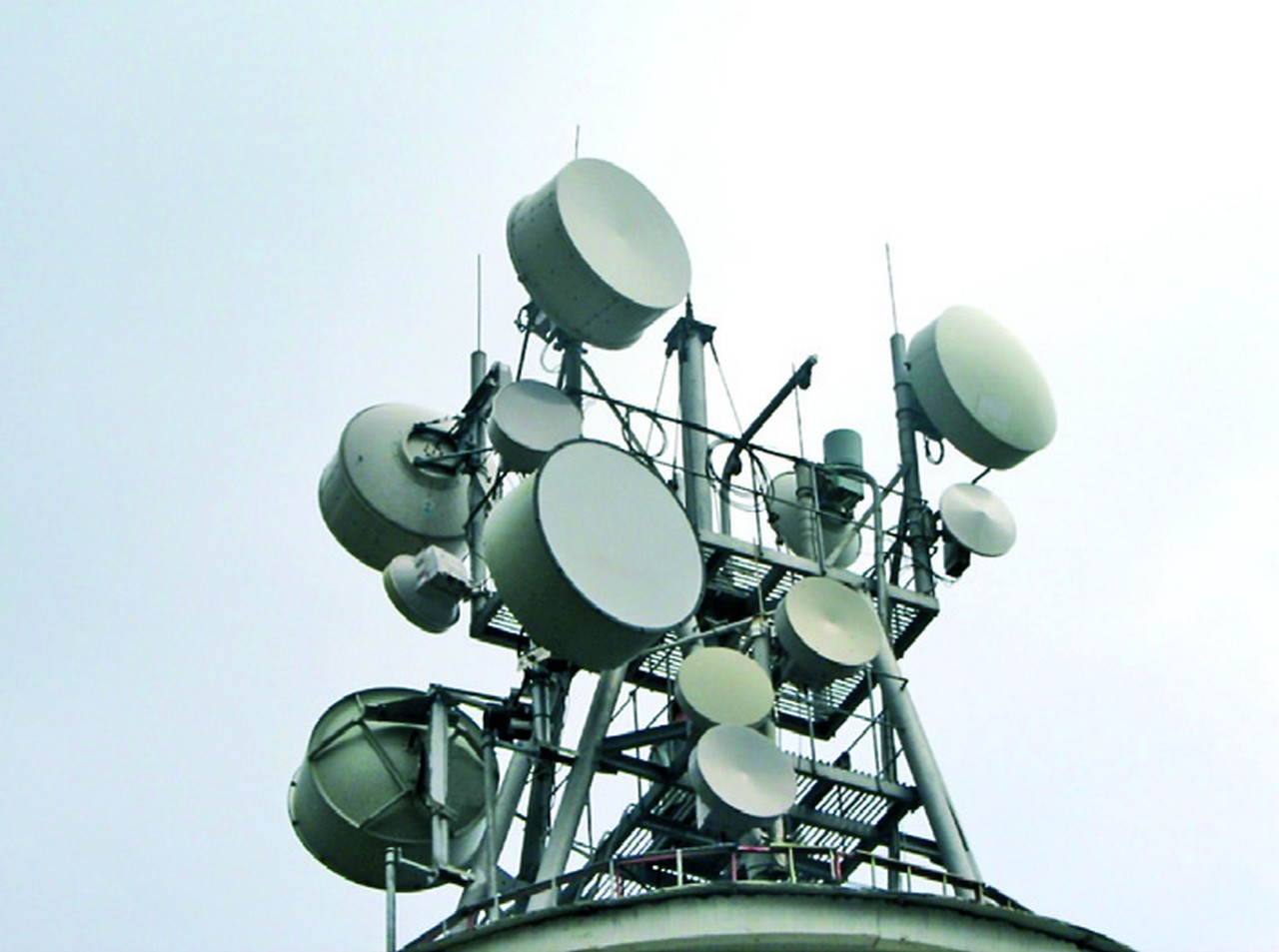

They are intended for signals transmission in radio communication,
broadcasting and television systems, as well
as in other radio engineering systems. They may be of
single-polarized and two-polarized types.
The upper transmitter/receiver module may be integrated
with antenna or installed separately, depending
of antenna reflector. Irrespective of the wave band used
and line configuration, the unified fastening of upper installed
equipment on mast is used: on tube of 114 mm
diameter. Support-rotating device permits to adjust the
antenna by 240 deg in azimuth and by 20 deg in elevation.
Under increased (more than 30 m/s) wind load the
antenna is equipped with additional supporting rods.
|
