Radar "MALACHITE"








Purpose: Interference immunity radar meter range with digital processing and automatic transfer of information radar "Malachite"

Description:
Noise-immune radar of meter band with digital processing and automatic data transmission “MALACHITE” is intended for:

- automatic detection, determination of current coordinates (azimuth, range, course, velocity and altitude when linked with PRV) and parameters of movement trajectory;

- automatic data transmission about tracked targets as to Command Center as well to users of radar information when used in structure of divisions of radar reconnaissance in conditions of intense reflections from landscape and land objects, acting of active jamming, passive and combined interferences;

- detection and tracking of targetswith low RCS, made by “stealth” technology;

- detection and tracking of marine targets.

Technical details:
Number of automatically detected targets with forming tracks and data transmission to user per one scan 256
Detection range of MiG-type fighter (at altitudes >10km) 400 km.
Minimum detection range 2,5 km.
Detection range of low size targets at low altitudes (altitude ≈ 300 m) 30-70 km.
Maximum range under clutter conditions up to 400 km.
Maximum detection altitude 20 000 m
Minimum detection altitude At land and sea surface
Decrease of detection range under jammins acting on lside antenna lobes ≤40
Mean-square errors of target coordinates determination without interferences:
- range 107 m.
- azimuth 0,32°
- velocity 7,0 m/s
Resolution:
- range 0,42 km
- azimuth <6°

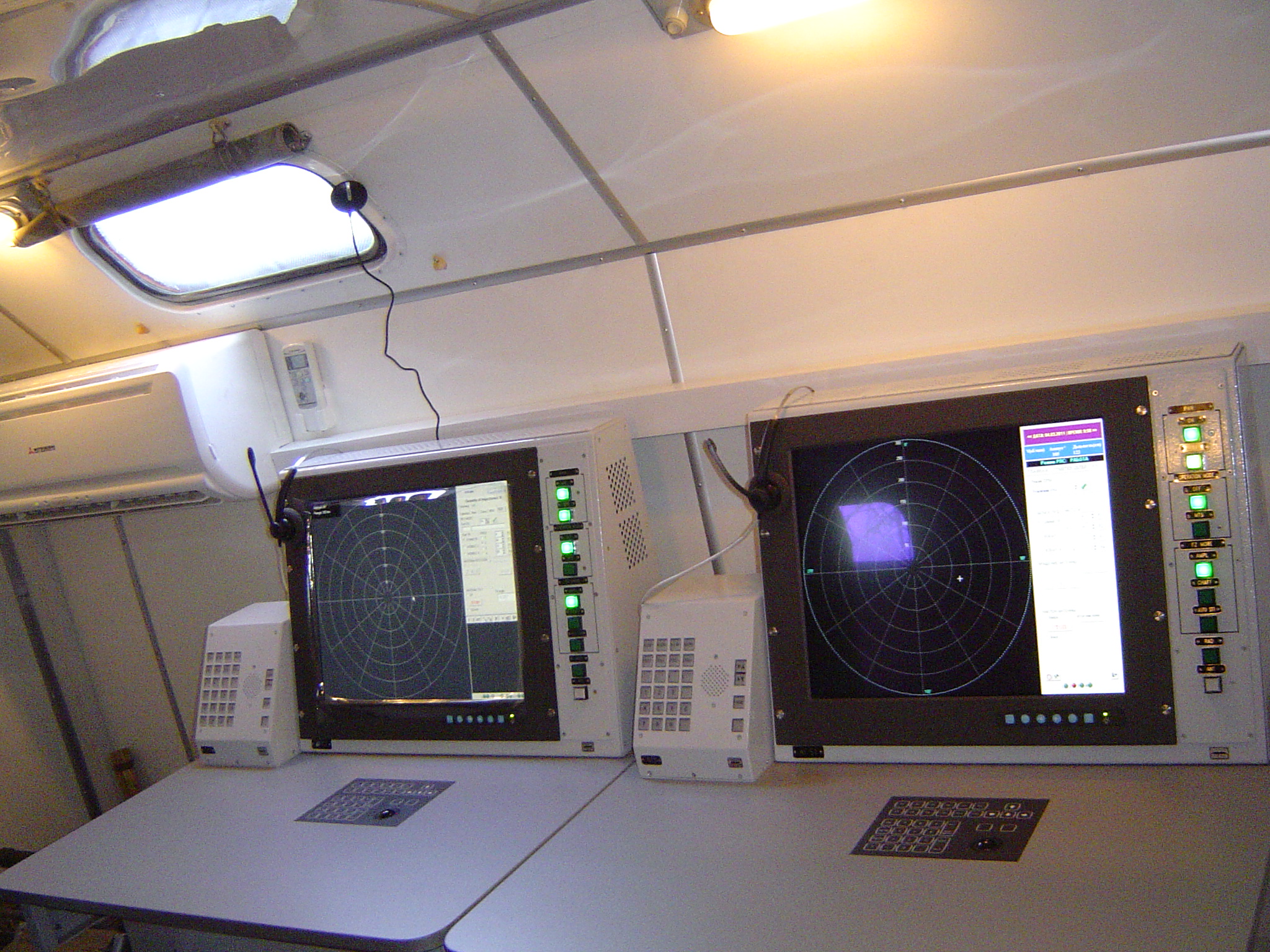

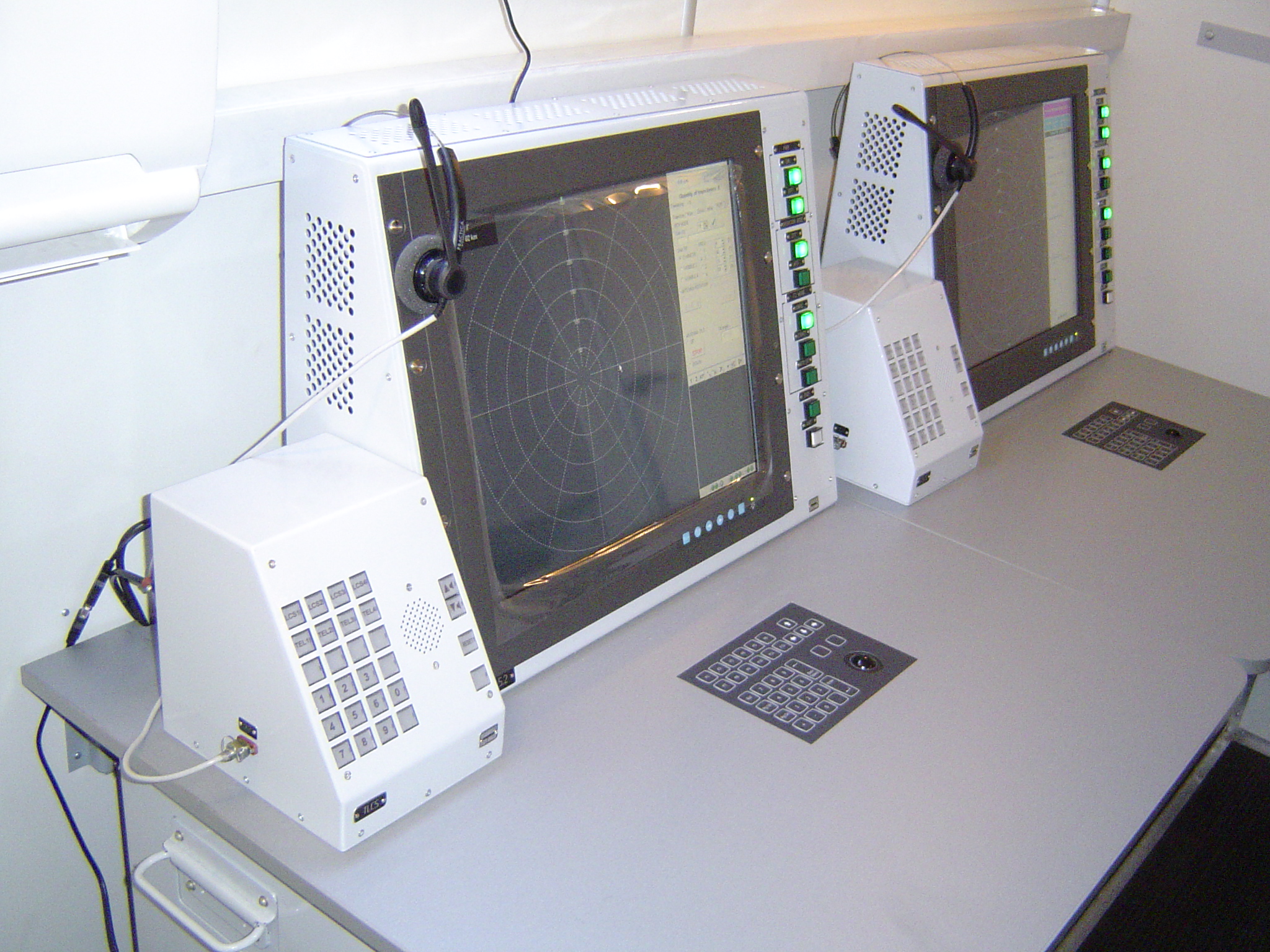

Distance to remote control console of radar (to remote PPI) 1000 m.
MTBF 2000 hours
Power consumption 6,5 kW
Linking with perspective Automated Command Centers Provided
