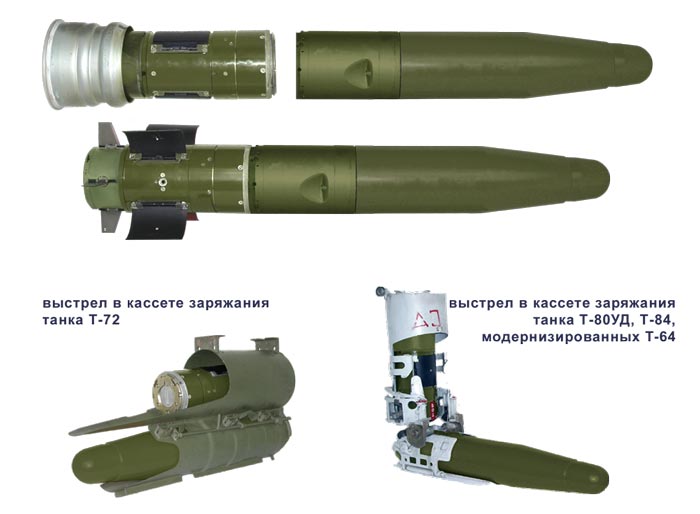

“KOMBAT” ROUND COMPRISING ANTITANK GUIDED MISSILE
|
|
Purpose:
Description:
Round comprising antitank guided missile is intended for firing from tanks T-80UD, T-84, T-72, modernized T-64 against stationary and moving modern armoured targets with combined, carried or monolithic armour, including ERA (explosive reactive armour), and also against pinpoint targets like weapon emplacements, a tank in a trench, light-armoured objects and helicopters.
Technical details:
|
Maximum firing range, m
|
5000
|
|
Flight time at maximum range, s
|
16,3
|
|
Guidance system
|
semiautomatic by laser beam
|
|
Warhead:
|
|
|
- type
|
tandem hollow-charge
|
|
- armour penetration behind ERA, mm
|
not less than 750
|
|
Round weight, kg
|
not more than 30,45
|
|
Overall dimensions, mm:
|
|
|
- missile calibre
|
125
|
|
- main part length
|
675
|
|
- tail part length
|
408
|
|
Operating temperature range, °C
|
from minus 40 to +60
|
|
|
|
| |
|
|
|
|
